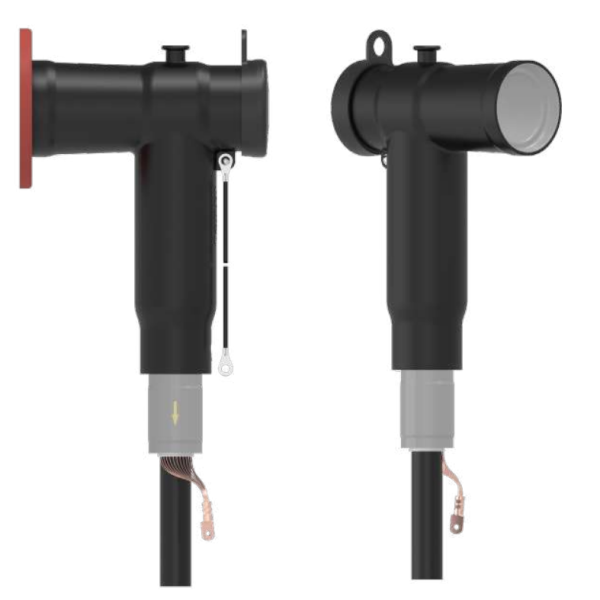

Elastimold Separable Connector ELBC TE Raychem 630A 24 kV 3C 35-95 mm² ELBC-824-S3M1-T
TE Connectivity’s (TE) Raychem Screened Separable Elbow Connection System ELBC are designed to connect polymeric cables to medium voltage gas insulated switchgears, transformers, motors which are using bushings type “C” according to EN 50180/EN 50181 specified for 630 A continuous current.
PRODUCT FEATURES
• Full EPDM material design: Multiple cable adapters for various cable sizes
• Reliable operation even under harsh environmental conditions
• Easy installation due to variable silicone cable adapters
• Screened connector body for improved safety and protect the connection system against accidental contact
• Easily accessible capacitve test point for Voltage Detection System (VDS)
• Shield-break design (oversheath-testing without disconnection of connector)
• Wide application range covers from 25 to 500sq mm
• Mechanical lugs designed to accept aluminium and copper conductors.
Elastimold Separable Connector ELBC TE Raychem 630A 24 kV 3C 35-95 mm² ELBC-824-S3M1-T
Type : ELBC-824-S3M1-T
Voltage : 24 kV
Cable Cross Section : 35 – 95 mm²
Diameter Over Cable Insulation Range : 18.6 – 24.8 mm
